Azure DevOps

The only core ABCD-Lite ready-made task is available for Azure DevOps pipelines for now. It can be installed from the Visual Studio marketplace: https://marketplace.visualstudio.com/items?itemName=1node.abcd-lite.

In addition to the existing ones in your project, you'll need the following tasks:

• ABCD Lite - used for communicating with ABCD Lite and initializing deployment.
• ORAS CLI - used to login to the container registry and push artifacts

ORAS CLI Installation

ORAS CLI can be installed in Azure DevOps by using the next task template:

          - task: CmdLine@2
            name: install_oras
            displayName: Download ORAS bin
            inputs:
              script: |
                VERSION="1.2.3"
                curl -LO "https://github.com/oras-project/oras/releases/download/v${VERSION}/oras_${VERSION}_linux_amd64.tar.gz"
                mkdir -p oras/
                tar -zxf oras_${VERSION}_*.tar.gz -C oras/
                rm -rf oras_${VERSION}_*.tar.gz

Any further actions, such as logging into the container registry and pushing artifacts, will be performed using the ORAS CLI. An example of its usage can be found in the pipeline example below.

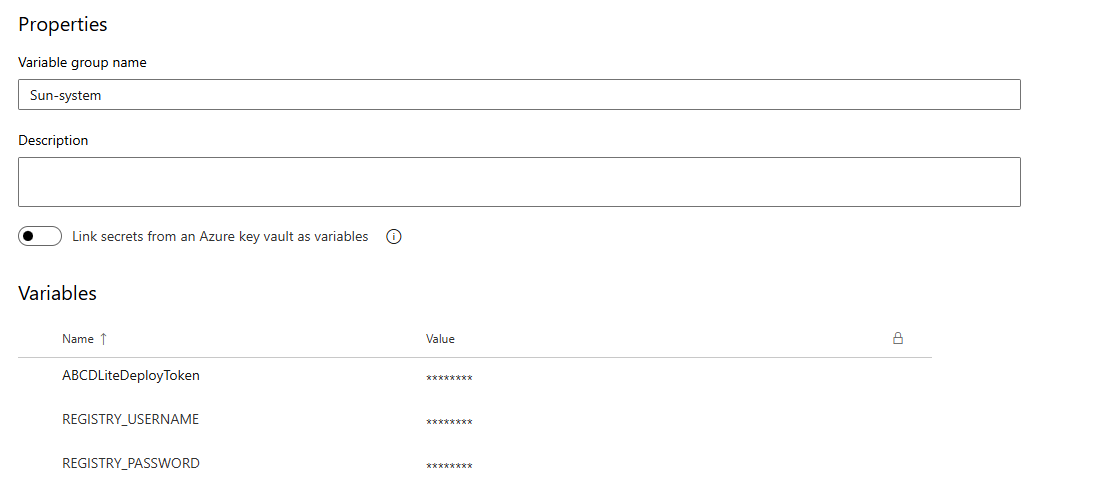

Globally, for the pipeline to work correctly, you need to create a variable group with the following variables before starting:

• REGISTRY_USERNAME - login for container registry
• REGISTRY_PASSWORD - password or token from container registry with push permissions
• ABCDLITE_DEPLOY_TOKEN - ABCD Lite deployment token

Other values are not sensitive and can be set in the pipeline variables for convenience.

Deployment template

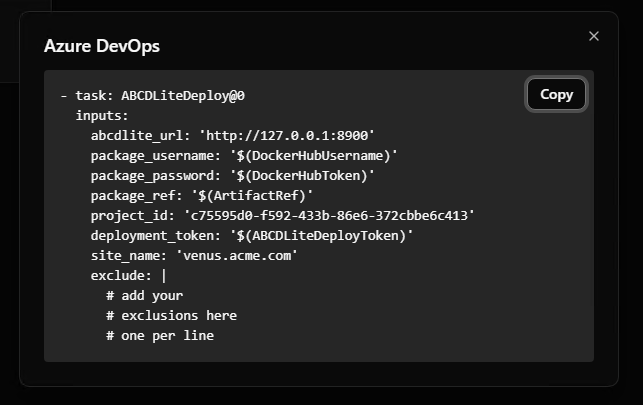

You can get pre-filled step template by clicking on Azure DevOps icon near the IIS site name on the project card.

Pipeline Example

In this pipeline, compared to the template generated by ABCD Lite, some changes have been made, specifically: some values have been moved to the pipeline variables for ease of use.

trigger: none

pool:
  vmImage: ubuntu-latest
variables:
  - group: Sun-system
  - name: csproj
    value: "Venus.Presentation/Venus.Presentation.csproj"
  - name: sln
    value: "Venus.sln"
  - name: projectName
    value: Venus.Presentation
  - name: REGISTRY_URL
    value: docker.io
  - name: ARTIFACT_REPOSITORY
    value: acme/venus
  - name: ABCD_LITE_URL
    value: https://abcd.acme.com
  - name: ABCD_LITE_PROJECT_ID
    value: c75595d0-f592-433b-86e6-372cbbe6c413
  - name: ABCD_LITE_SITE_NAME
    value: venus.acme.com

stages:
  - stage: Build
    displayName: Build
    jobs:
      - job: Build
        displayName: Build
        pool:
          vmImage: ubuntu-latest
        steps:
          - task: DotNetCoreCLI@2
            name: nuget_restore
            displayName: NuGet Restore
            inputs:
              command: 'restore'
              projects: '$(sln)'
          - task: DotNetCoreCLI@2
            name: dotnet_build
            displayName: Build
            inputs:
              command: 'build'
              projects: '$(csproj)'
              arguments: '-c Release'
          - task: DotNetCoreCLI@2
            name: dotnet_publish
            displayName: Publish
            inputs:
              command: 'publish'
              publishWebProjects: false
              projects: '$(csproj)'
              arguments: '-c Release /p:EnvironmentName=Production -o $(Build.ArtifactStagingDirectory)/$(projectName)_$(Build.BuildNumber)'
          - task: CmdLine@2
            name: install_oras
            displayName: Download ORAS bin
            inputs:
              script: |
                VERSION="1.2.3"
                curl -LO "https://github.com/oras-project/oras/releases/download/v${VERSION}/oras_${VERSION}_linux_amd64.tar.gz"
                mkdir -p oras/
                tar -zxf oras_${VERSION}_*.tar.gz -C oras/
                rm -rf oras_${VERSION}_*.tar.gz
          - task: CmdLine@2
            name: oras_login
            displayName: Login to container registry
            inputs:
              script: |
                ./oras/oras login $(REGISTRY_URL) --username $(REGISTRY_USERNAME) --password $(REGISTRY_PASSWORD)
          - task: CmdLine@2
            name: oras_push
            displayName: Push artifacts to container registry
            inputs:
              script: |
                ./oras/oras push $(REGISTRY_URL)/$(ARTIFACT_REPOSITORY):$(Build.BuildNumber) $(Build.ArtifactStagingDirectory)/$(projectName)_$(Build.BuildNumber)/:application/vnd.acme.rocket.docs.layer.v1+tar

  - stage: Deploy
    displayName: Deploy
    pool:
      vmImage: ubuntu-latest
    condition: succeeded()
    dependsOn: Build
    jobs:
      - deployment: Deploy
        displayName: Deploy
        environment: Production
        strategy:
          runOnce:
            deploy:
              steps:
              - task: ABCDLiteDeploy@0
                inputs:
                  abcdlite_url: $(ABCD_LITE_URL)
                  package_ref: $(REGISTRY_URL)/$(ARTIFACT_REPOSITORY):$(Build.BuildNumber)
                  package_username: $(REGISTRY_USERNAME)
                  package_password: $(REGISTRY_PASSWORD)
                  project_id: $(ABCD_LITE_PROJECT_ID)
                  deployment_token: $(ABCDLITE_DEPLOY_TOKEN)
                  site_name: $(ABCD_LITE_SITE_NAME)
                  exclude: |
                    wwwroot/media

Assumptions made for this pipeline example:

• The solution file (.sln) is in the root of the repository.
• The target C# project is located at Venus.Presentation/Venus.Presentation.csproj, relative to the root of the repository.
• wwwroot/media is a directory that contains files which must be preserved during deployment.
